Coilover Suspension For Holden Commodore 2007-2012
Coilover Suspension For Holden Commodore 2007-2012
Couldn't load pickup availability
SPECIFICATIONS
Material Type: car replacement
Type: Oil Pressure
Item Length: 62cm
Special Features: non adjustable damper
Item Width: 51cm
Country/Region of Manufacture: cn au
Item Height: 21cm
Interchange Part Number: Shock Absorber, Suspension Struts
Item Weight: 23kg
Manufacturer Part Number: For Holden VE Commodore Sedan,Wagon or Ute 06-13
Color: Golden
Warranty: 2 Year
Claims:: No any proprietary rights,affiliate and sponsorship with the third party marks.
Product Type:: This is aftermarket replcement part.
Front spring rate: 7 kg/mm (392 lbs/in)
Fit 1: For Holden VE VF Commodore Sedan Wagon Ute 06-18
Fit 2: for Holden Commodore VE VF Sedan 2006-2018
Fit 3: for Holden Commodore VE VF Wagon 2008-2018
Product Note:: Due to the light and different screen display,the picture and product maybe slightly different
Fit 4: for Holden Commodore VE VF Ute 2007-2018
Fit 5: for Holden Calais VE VF Sedan 2006-2018
Rear spring rate: 11 kg/mm (392 lbs/in)
Other Part Number: for Holden VE VF, Coilover, Coilovers
|
Toll IPEC Mine Zone Black List (The Parcel Cannot Reach) |
||||||||
|
6443 |
6215 |
6427 |
6230 |
6440 |
6225 |
6436 |
6646 |
6646 |
|
6233 |
6640 |
6612 |
6507 |
6642 |
6390 |
6435 |
6621 |
6415 |
|
6431 |
6438 |
6718 |
6999 |
6437 |
6426 |
6753 |
6639 |
6346 |
|
6537 |
6722 |
6754 |
6638 |
6714 |
6430 |
6751 |
6762 |
6555 |
|
6705 |
6330 |
6721 |
|
|
|
|
|
|
Application
For Holden Commodore VE Sedan 2006-2013
For Holden Commodore VE Wagon 2008-2013
For Holden Commodore VE Ute 2007-2013
Note: Don't Fit For VE SSV Commodore 6.0 model 2007
Specifications
Top mounts: Front and rear OE top mounts required
Damping: Not available
Shock type: Twin tube
Spring preload: 7-10 mm
Spring rate Front: 7 kg/mm (392 lbs/in)
Spring rate Rear: 8 kg/mm (448 lbs/in)
Spring length Front: 200mm
Spring length Rear: 185mm
Front Lowering：25-75mm
Rear Lowering：25-75mm
Coilover overall length Front: 430mm-510mm
Coilover overall length Rear: 405mm-445mm
Color: Golden
Package included

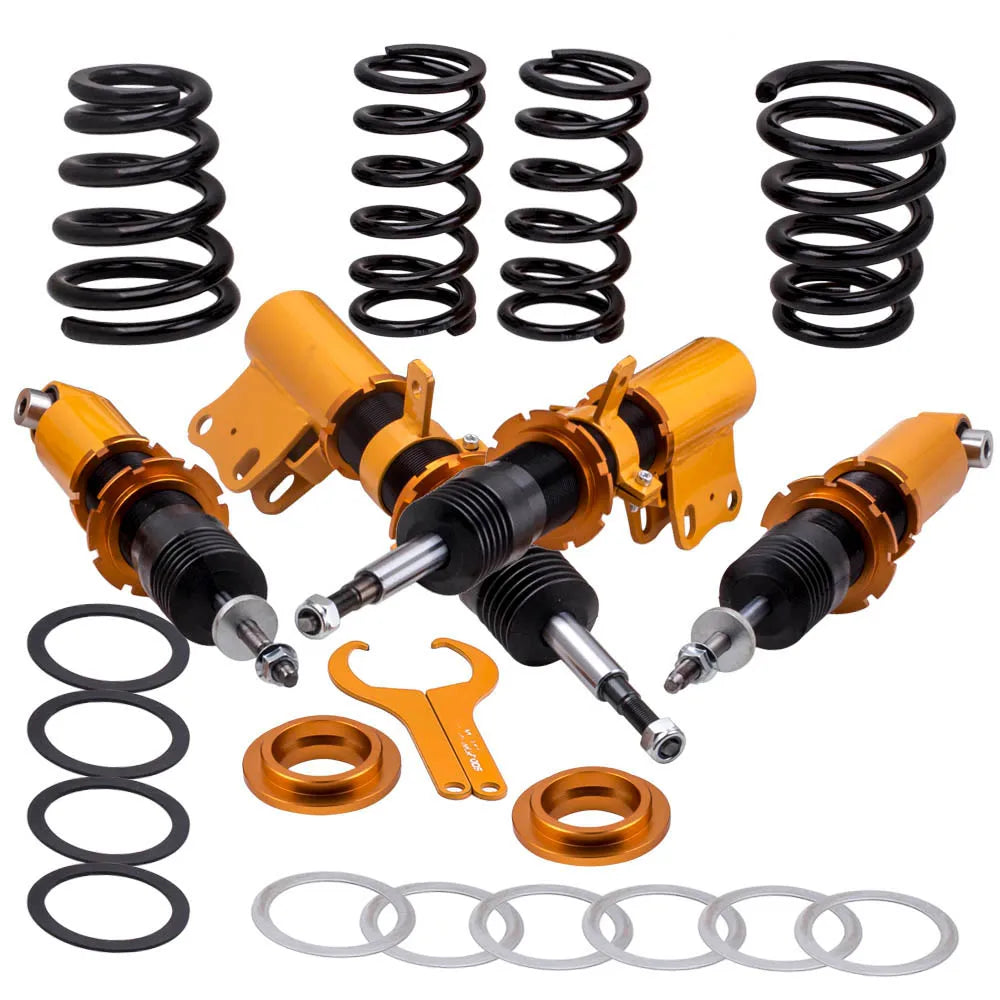

Springs and shocks for front and rear, No top mounts included
Dimension
Size: 63*51*21 cm
Weight: 24.5 kg
Features

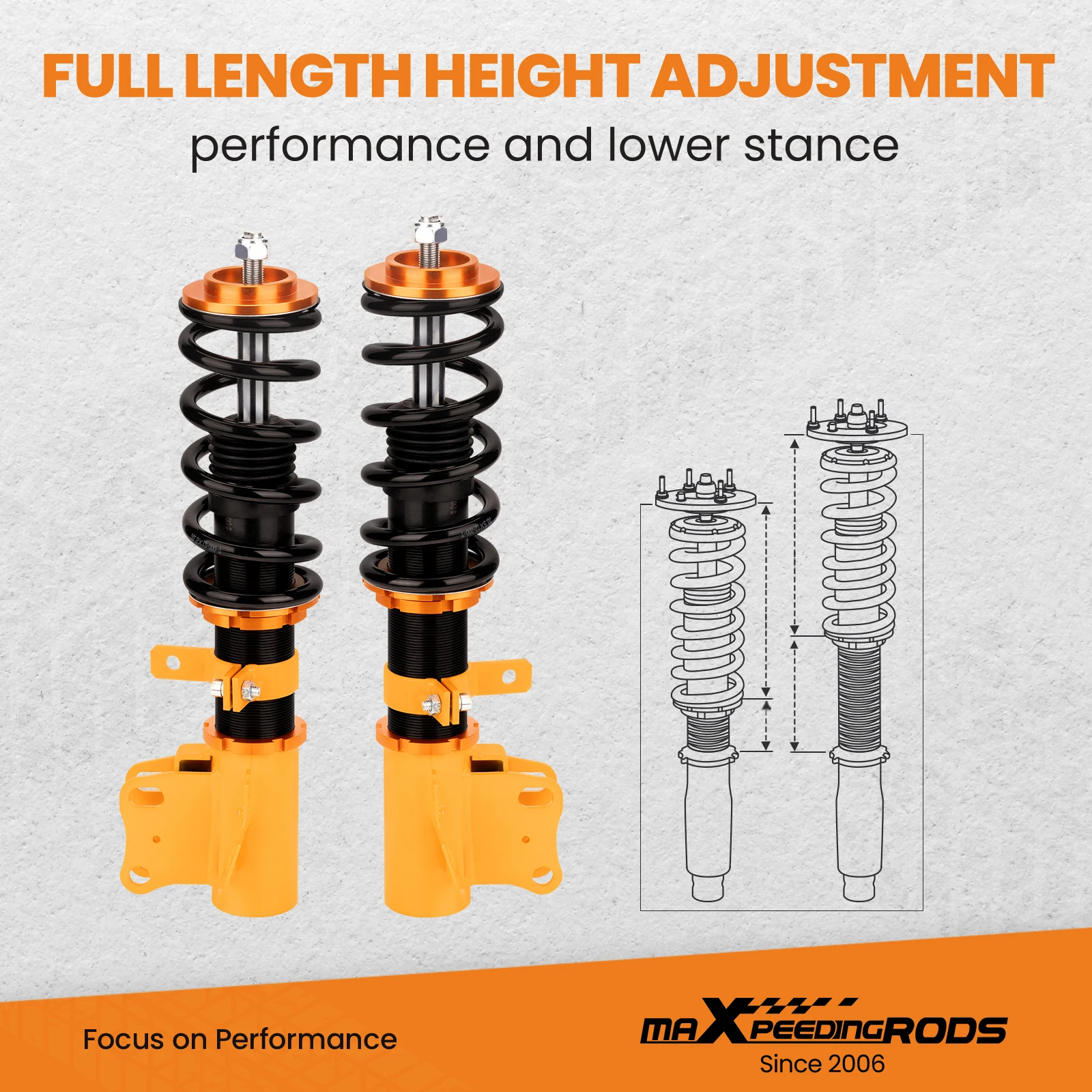

1. Lowered height adjustment from 25mm-75mm which allow lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3. CNC machined Aluminum lockers-- - excellent strength, and save weight
4. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
5. High tensile spring--- 600,000 times continuously test to assure it's high tensile strength.

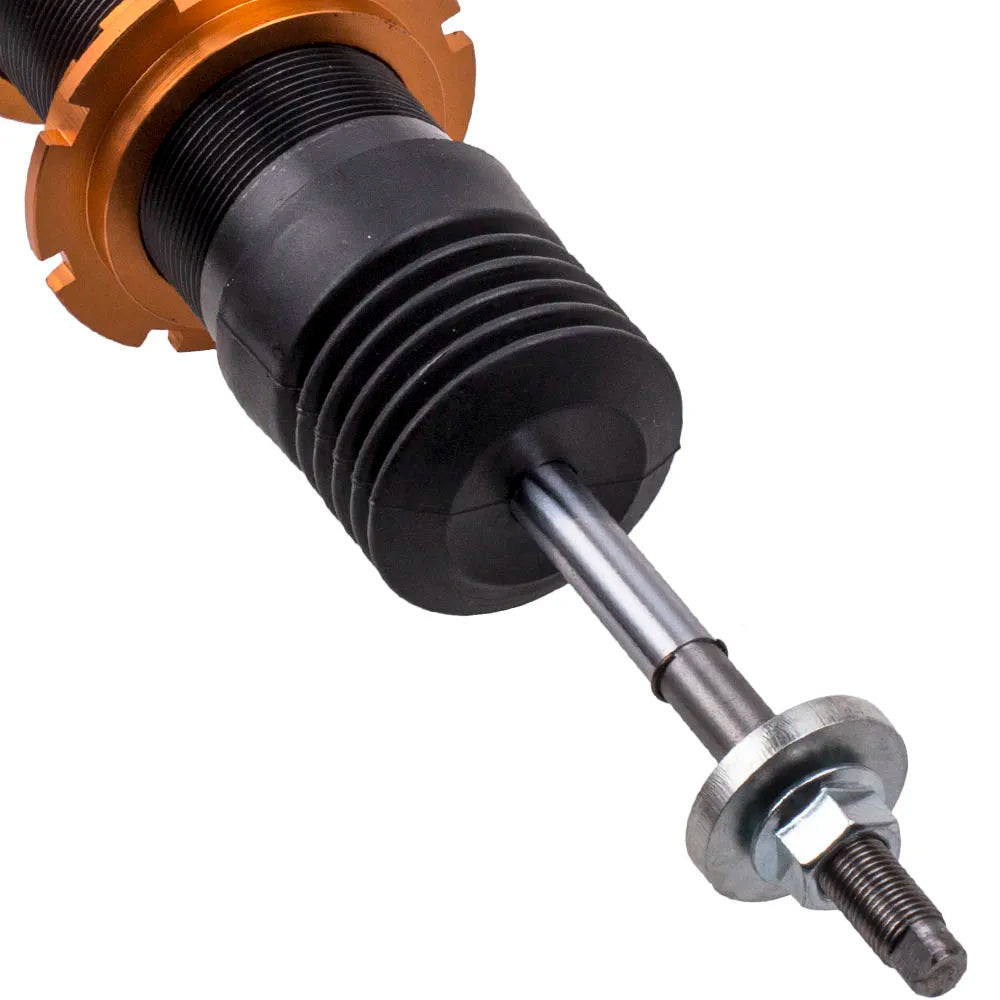

6. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
7. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
8. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
Notice
* Professional installation & alignment suggested.
* Please check our store for other auto parts you may be interested in.
