Coilover Suspension Kit For Holden Commodore 06-2013
Coilover Suspension Kit For Holden Commodore 06-2013
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: MXR
High-concerned Chemical: None
OEM NO.: For Holden Commodore VE Sedan 2006-2013
Material Type: adjustable damper; pillow ball design
Type: Resistance Adjustable
Item Length: 63cm
Special Features: For Holden Commodore VE Ute 2007-2013
Item Width: 21cm
Country/Region of Manufacture: CN US AU CZ
Item Height: 21cm
Interchange Part Number: Don't Fit For VE SSV Commodore 6.0 model 2007
Item Weight: 25500g
Manufacturer Part Number: For Holden Commodore VE Wagon 2008-2013
Damper:: 24-level of adjustable damper
Model 2:: Front and rear OE top mounts required
Claims:: No any proprietary rights,affiliate and sponsorship with the third party marks.
Product Note:: Due to the light and different screen display,the picture and product maybe slightly different
Shipping Note:: Indonesian order need note NPWP or KTP number for clearance,as the local policy required.
Model 1:: Springs and shocks for front and rear, no top mounts included
Product Type:: This is aftermarket replcement part.
Model 3:: suspension parts,coilover set,struts,spring shock absorber
|
Toll IPEC Mine Zone Black List (The Parcel Cannot Reach) |
||||||||
|
6443 |
6215 |
6427 |
6230 |
6440 |
6225 |
6436 |
6646 |
6646 |
|
6233 |
6640 |
6612 |
6507 |
6642 |
6390 |
6435 |
6621 |
6415 |
|
6431 |
6438 |
6718 |
6999 |
6437 |
6426 |
6753 |
6639 |
6346 |
|
6537 |
6722 |
6754 |
6638 |
6714 |
6430 |
6751 |
6762 |
6555 |
|
6705 |
6330 |
6721 |
|
|
|
|
|
|
Introduction

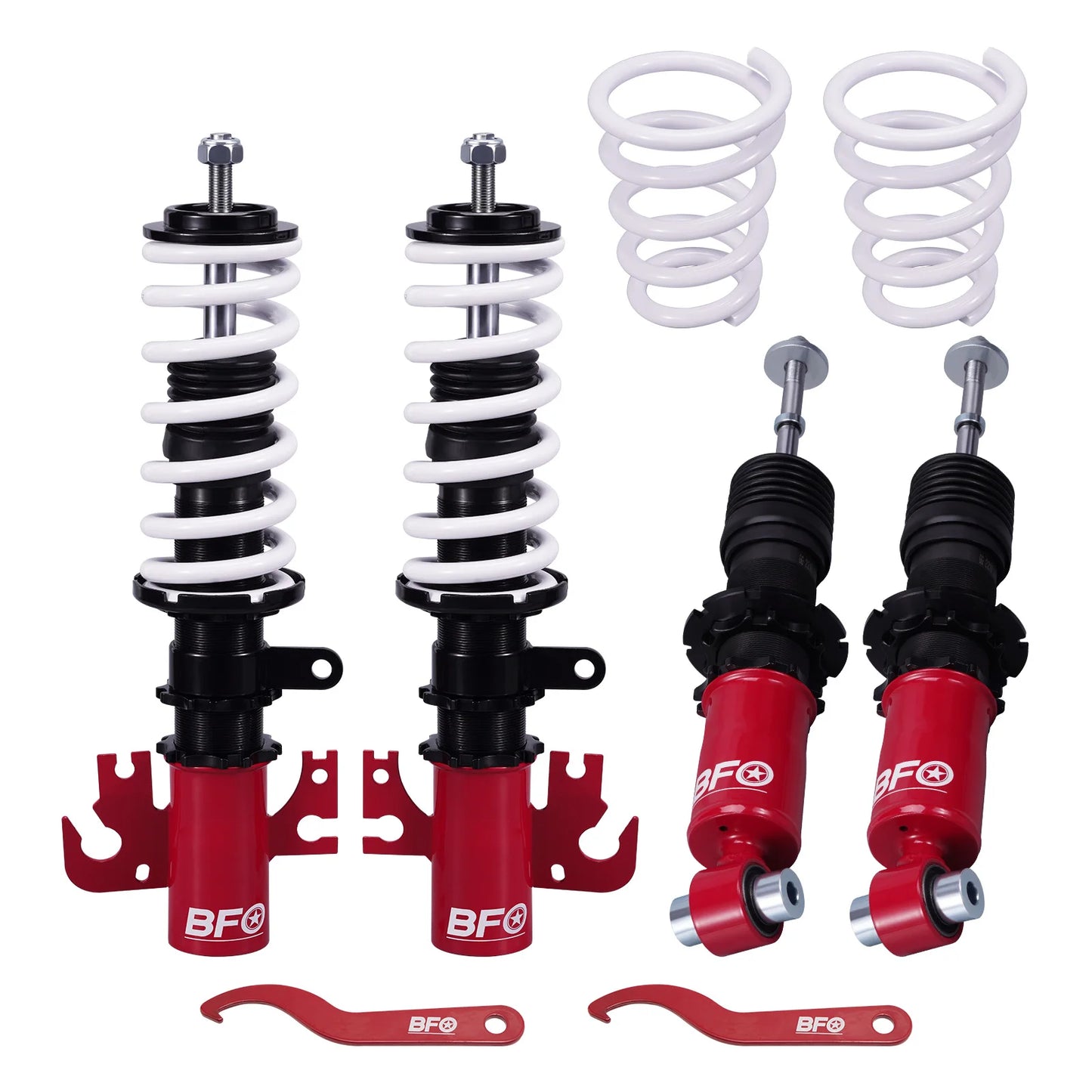

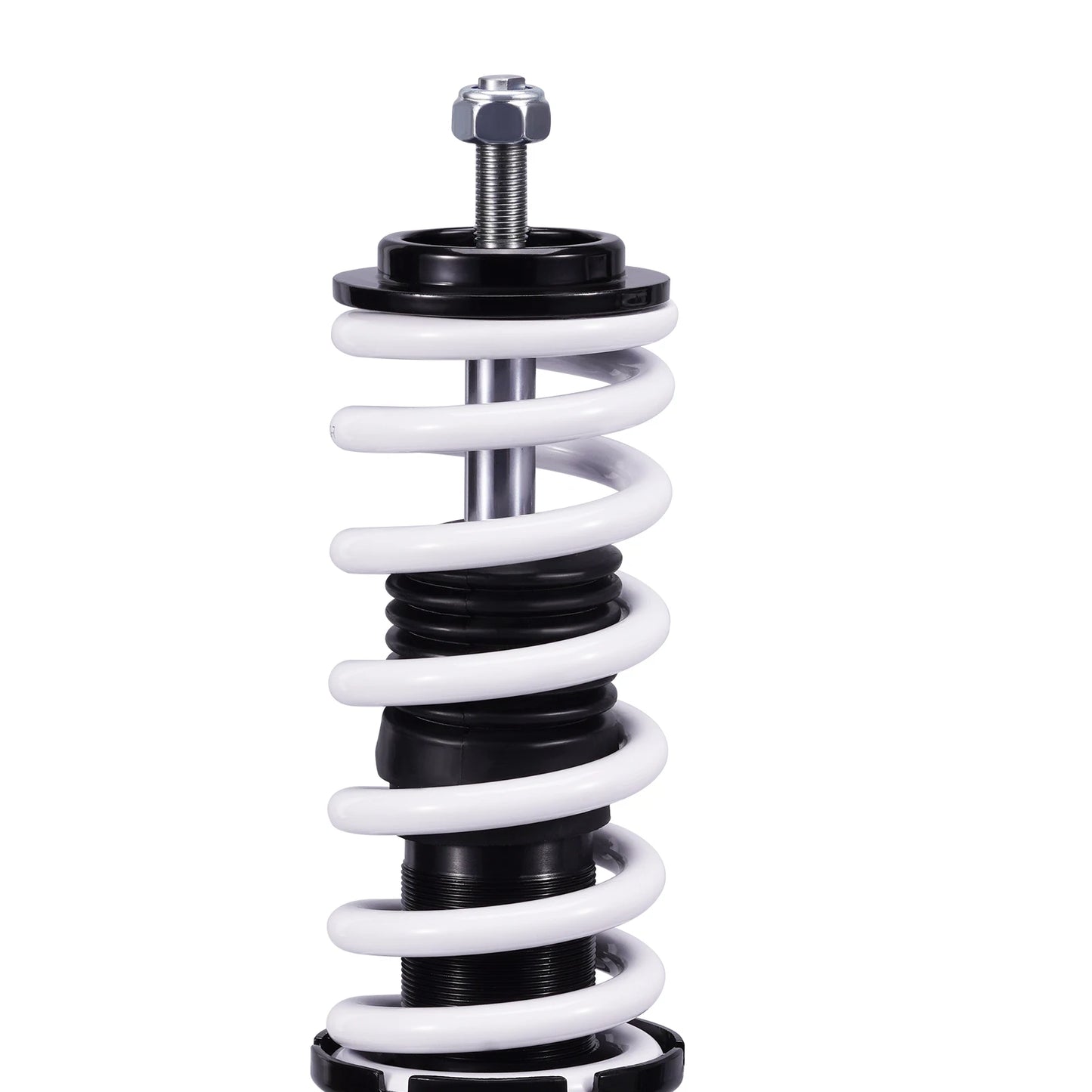

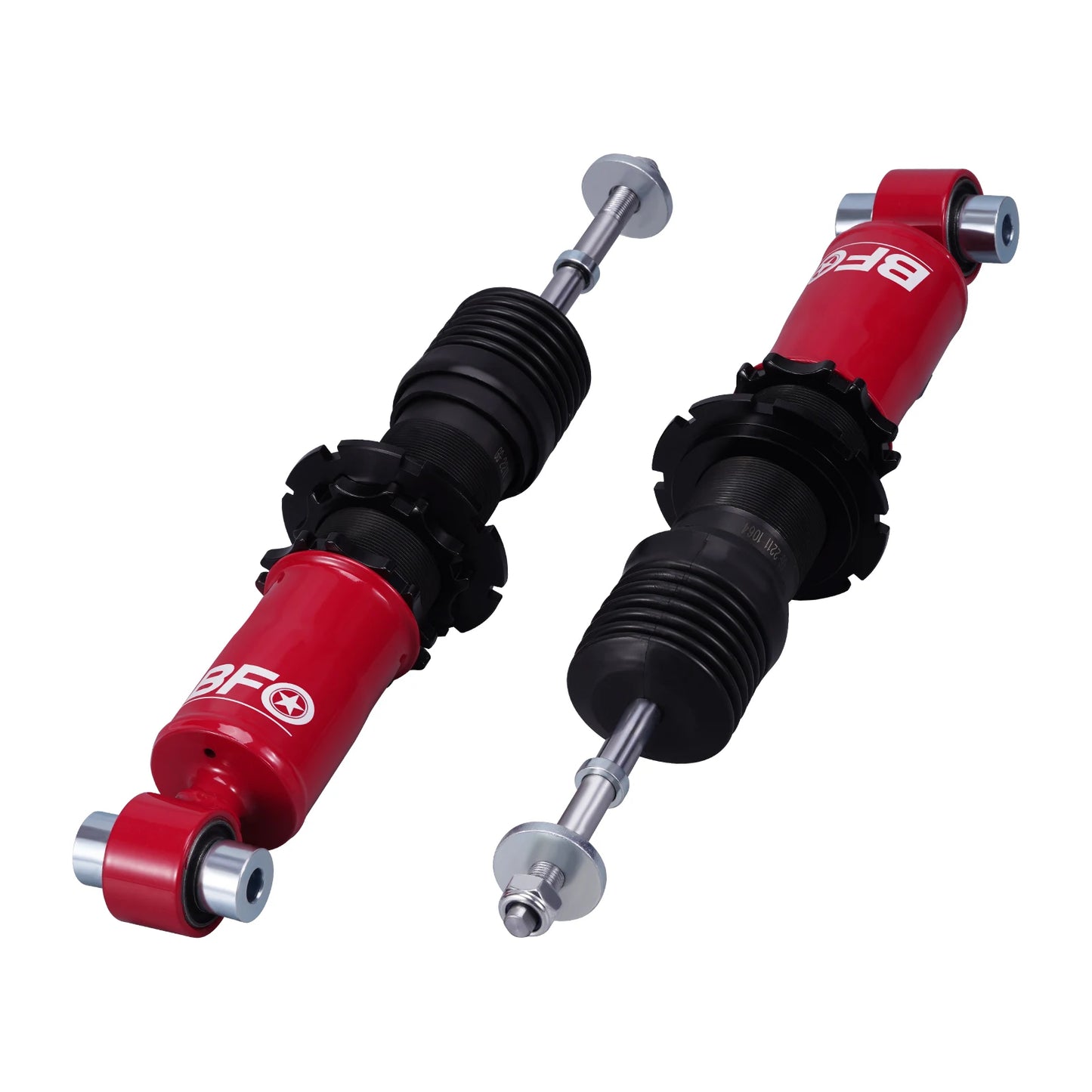

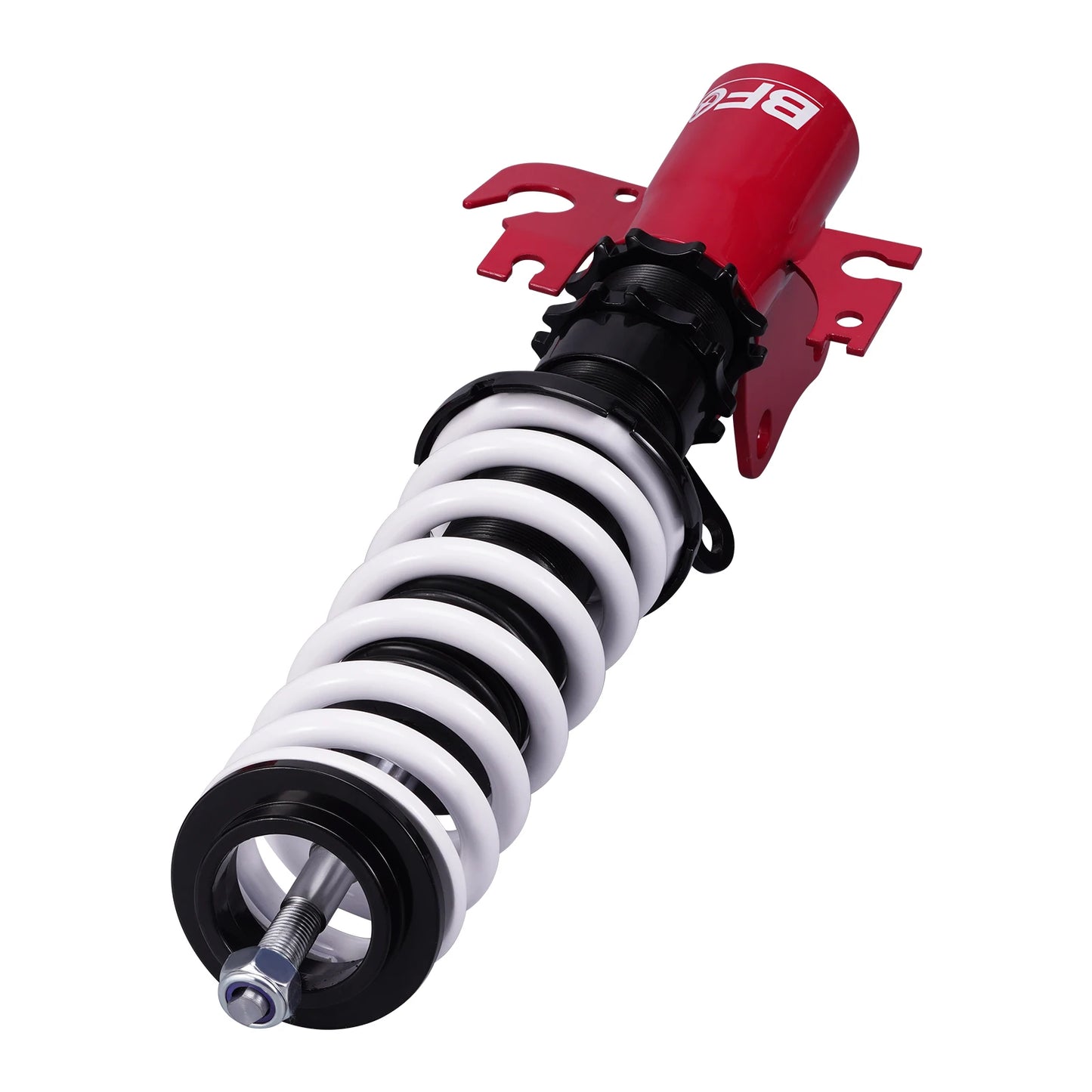

BFCO coil-overs are designed as entry-level for street use. It features full-length height adjustable and adjustable camber plates (applicable for some vehicles), which offers you a lowered stance, and improved performance for your daily use vehicle.
Application
For Holden Commodore VE Sedan 2006-2013
For Holden Commodore VE Wagon 2008-2013
For Holden Commodore VE Ute 2007-2013
Note: Don't Fit For VE SSV Commodore 6.0 model 2007
Specifications
Top mounts: Front and rear OE top mounts required
Damping: Not available
Shock Type: Twin tube
Adjustable Camber plate: No
Spring preload: 7-10 mm
Spring rate Front: 7 kg/mm (392 lbs/in)
Spring rate Rear: 8 kg/mm (448 lbs/in)
Spring length Front: 200mm
Spring length Rear: 185mm
Adjustable height: lowering 1-3 inch
Coilover overall length Front: 430mm-510mm
Coilover overall length Rear: 405mm-445mm
Color: Black body with red spring
Package included

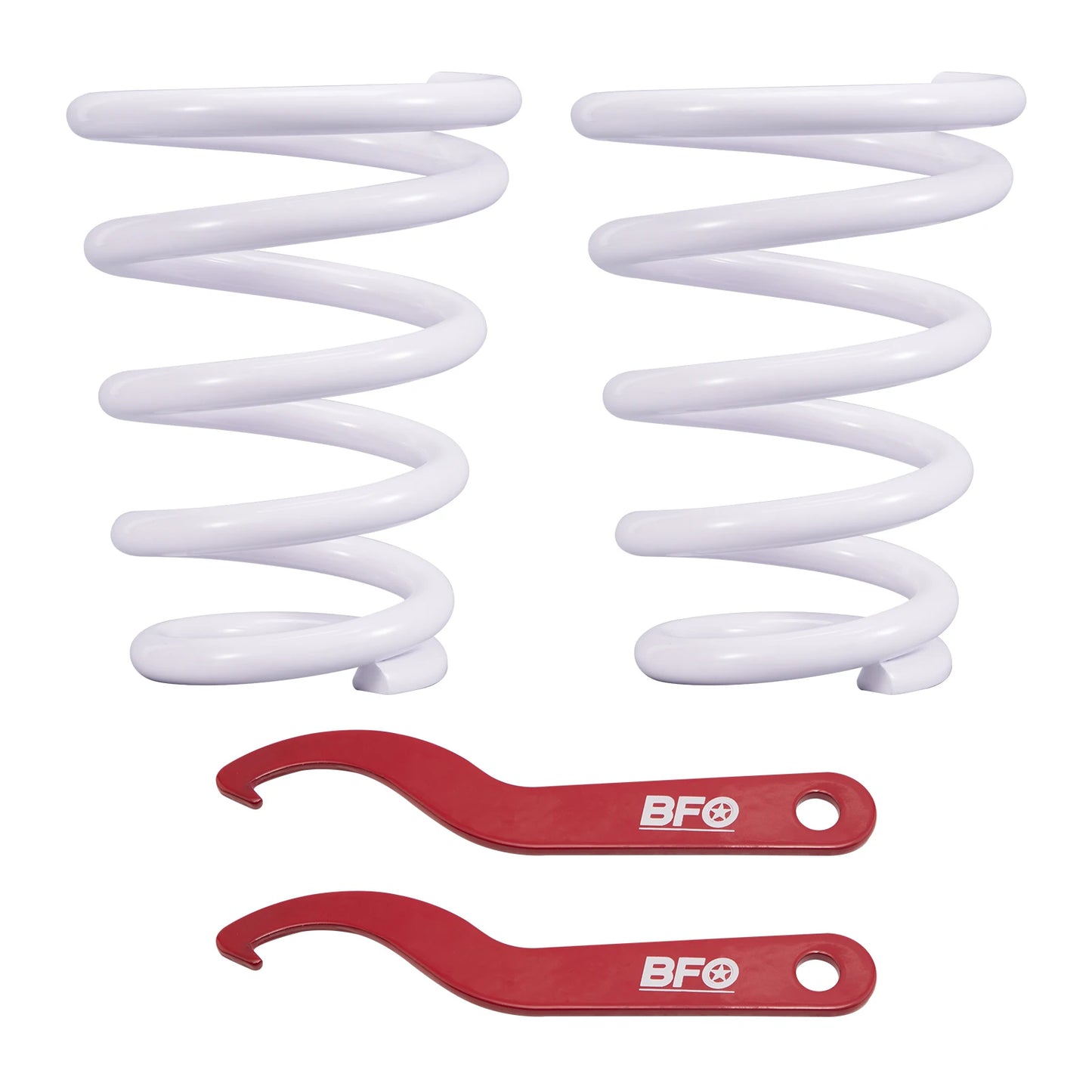

Springs and shocks for front and rear, No top mounts included
Dimension
Size: 62*50*19 cm
Weight: 24.3 kg
Features
1. Self design structure and new manufacturing system to give more customers good coilovers without breaking your bank.
2. Full length height adjustable---lower your car 1-3 inches to get performance ride
3. Independent Ride Height and Spring Pre-load Adjustments
4. Twin-Tube System for Comfortable Ride on Streets
5. Coated finish to avoid rust

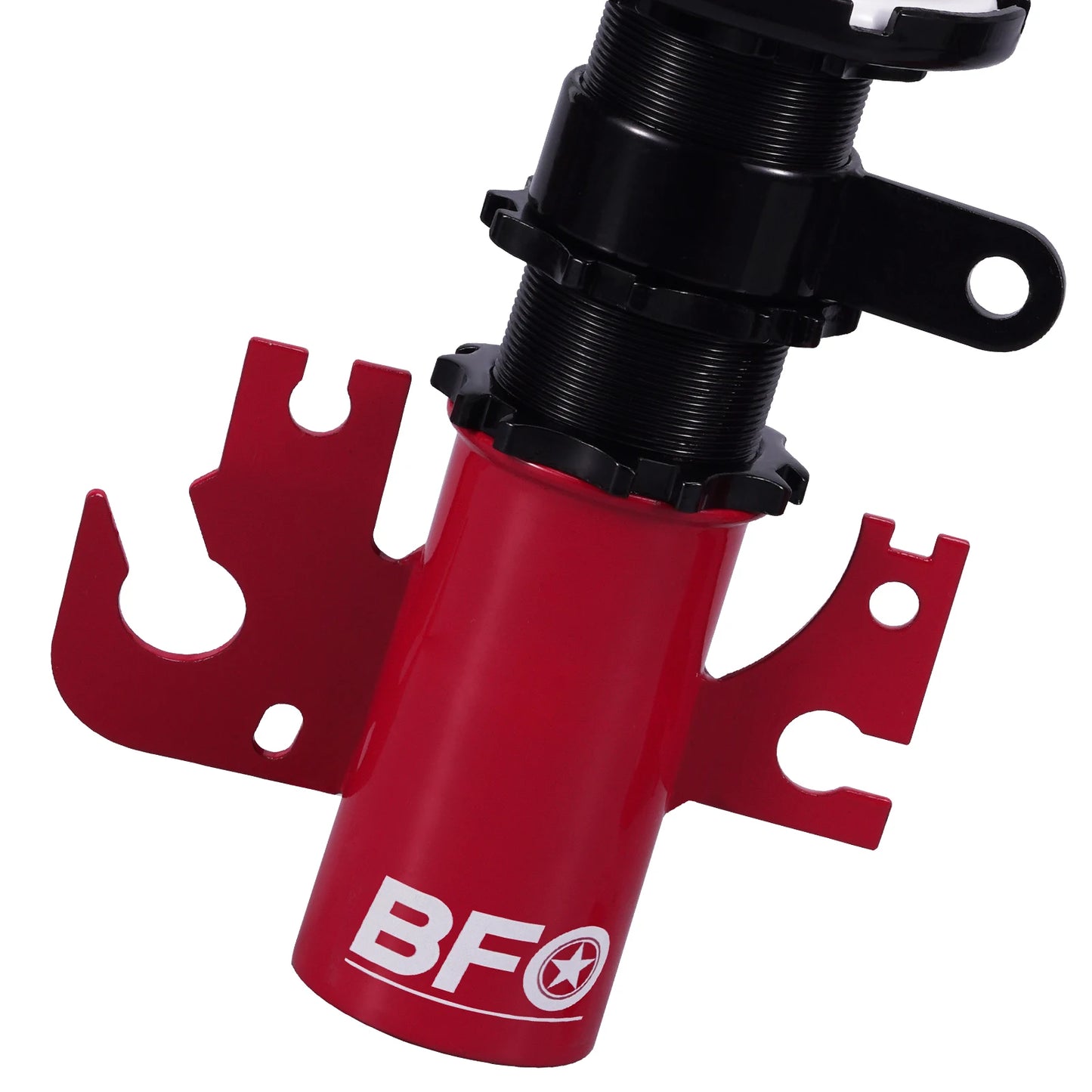

6. Heavy Duty Steel Lower Mounts
7. Simple install, Easy to adjust.
Suggestion
1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
Notice
* No instruction included; Professional installation & alignment suggested.
