SPECIFICATIONS

High-concerned Chemical: None

Type: Other

Model Number: TF-TSL3500

Design: SCISSOR

Lifting Capacity: 3500kgs

Place of Origin: Shandong, China

Warranty: 12 Months

Product name: scissor car lift

Certification: CE & ISO

Power unit: electro-hydraulic

Lifting capacity: 3.5 tons

Lifting height: 1850 mm

Min height: 110 mm

Runway width: 620mm

Runway length: 1535-2020mm

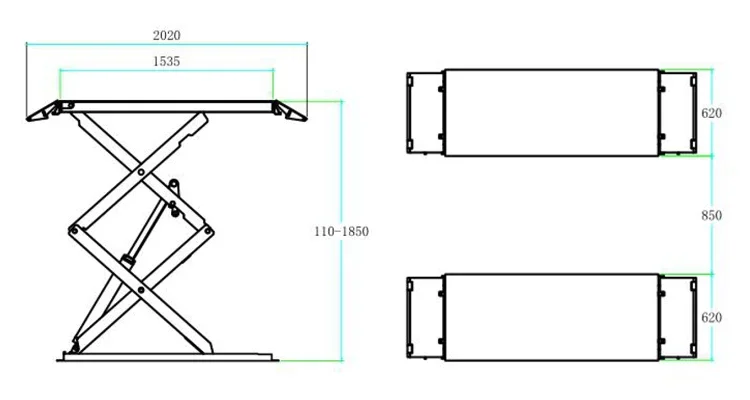

Specification

Product name	scissor car lift
Lifting capacity	3500kgs (3000kgs optional)
Lifting height	1850mm
Min height	110mm
Runway width	620mm
Runway length	1535-2020mm
Distance between 2 runways	850-900mm
Total width	2090mm-2140mm
Lifting time	37s
Voltage	220V/380V/customized
Power	2.2KW

Packages details of our scissor car lift

Gross weight	800kgs
Packages quantity	2
Packages size	1700*700*420mm (1 pc) 420*370*1100mm (1 pc)   (0.67CBM)

Product details

Control panel on the electric cabinet

Oil tube

Oil cylinder

Ramp

Sliding block

Limit switch
