Features:
1.New resistance, capacitance, and inductance testing instruments are simple and reliable
2.Many multimeters lack the ability to measure capacitance, inductance, and small resistors below 1 ohm, and the M162 LCR meter perfectly compensates for this deficiency. An accuracy of approximately 1% can be achieved without special calibration.
3.Adopting STM32F303 microcontroller,
4.2.4-inch high-definition LCD display screen
5.Widely used: suitable for DIY users, electronics enthusiasts, product measurement, etc

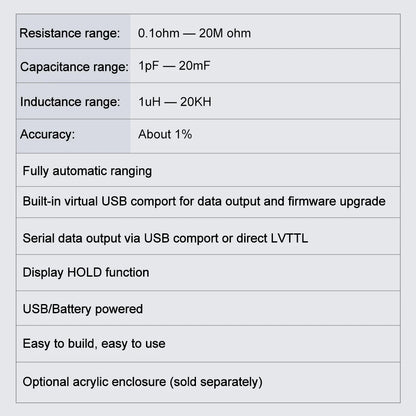

Parameters:

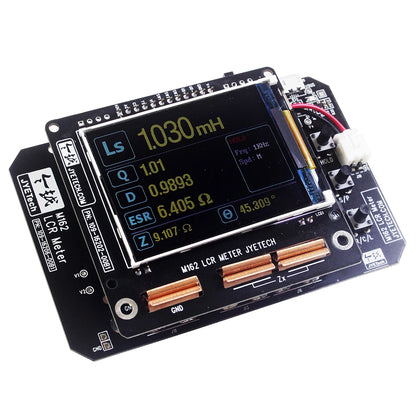

Model: M162
Resistance measurement range: 0.1 Ω -20M Ω
Capacitance measurement range: 1pF -20mF
Inductance measurement range: 1uH -20KH
Fully automatic range selection

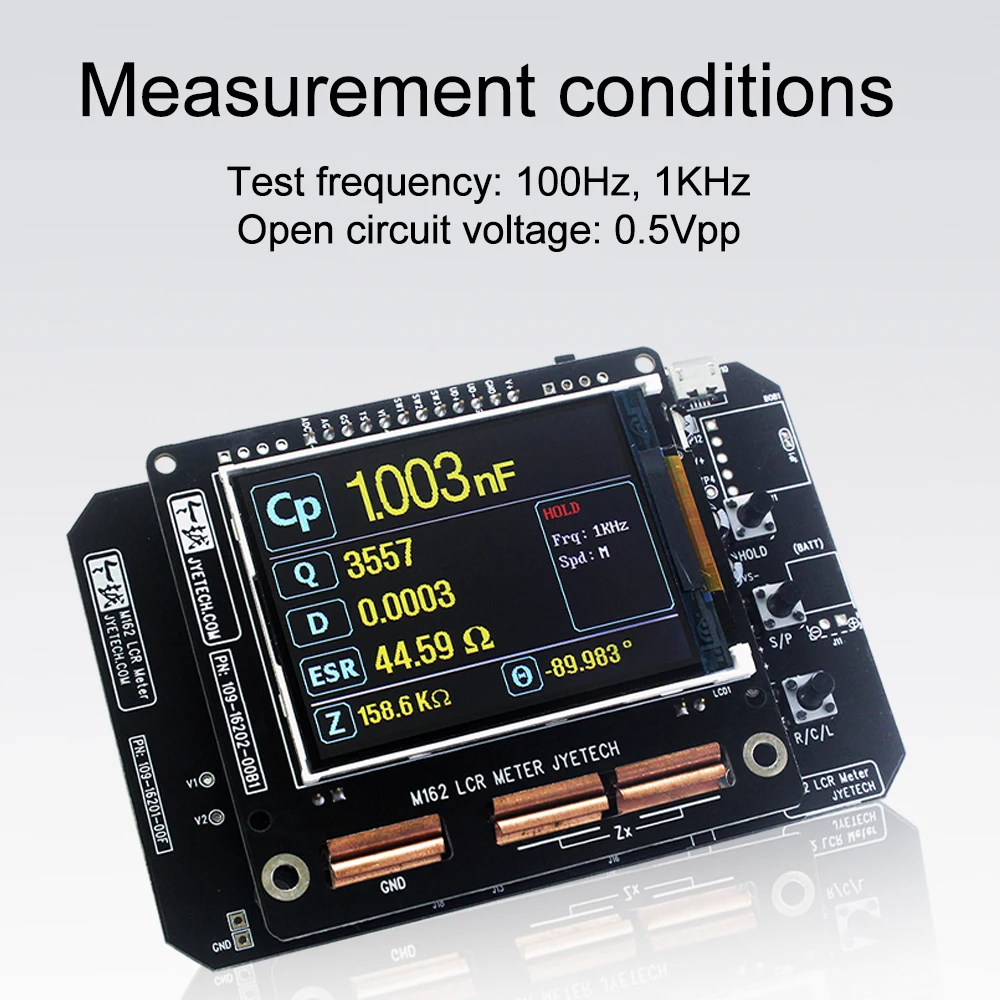

Measurement frequency: 2nd gear 1KHz and 100Hz
Accuracy: approximately 1%
USB port can achieve charging, data transmission, and firmware upgrade functions
Can continuously output measurement data through USB virtual serial port and 3.3V serial port
With display freezing function
Easy to make and operate

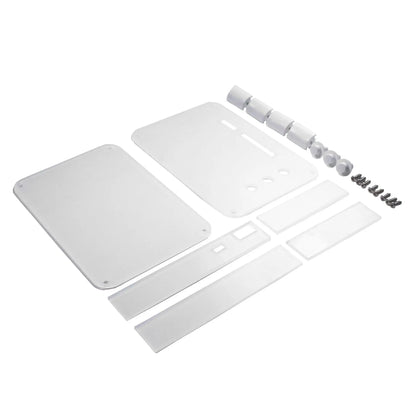

Can be paired with an organic chip shell (sold separately)
USB/battery (3.7V) power supply

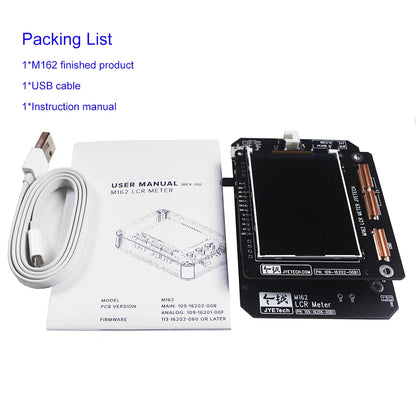

Package include:
Paper box packaging

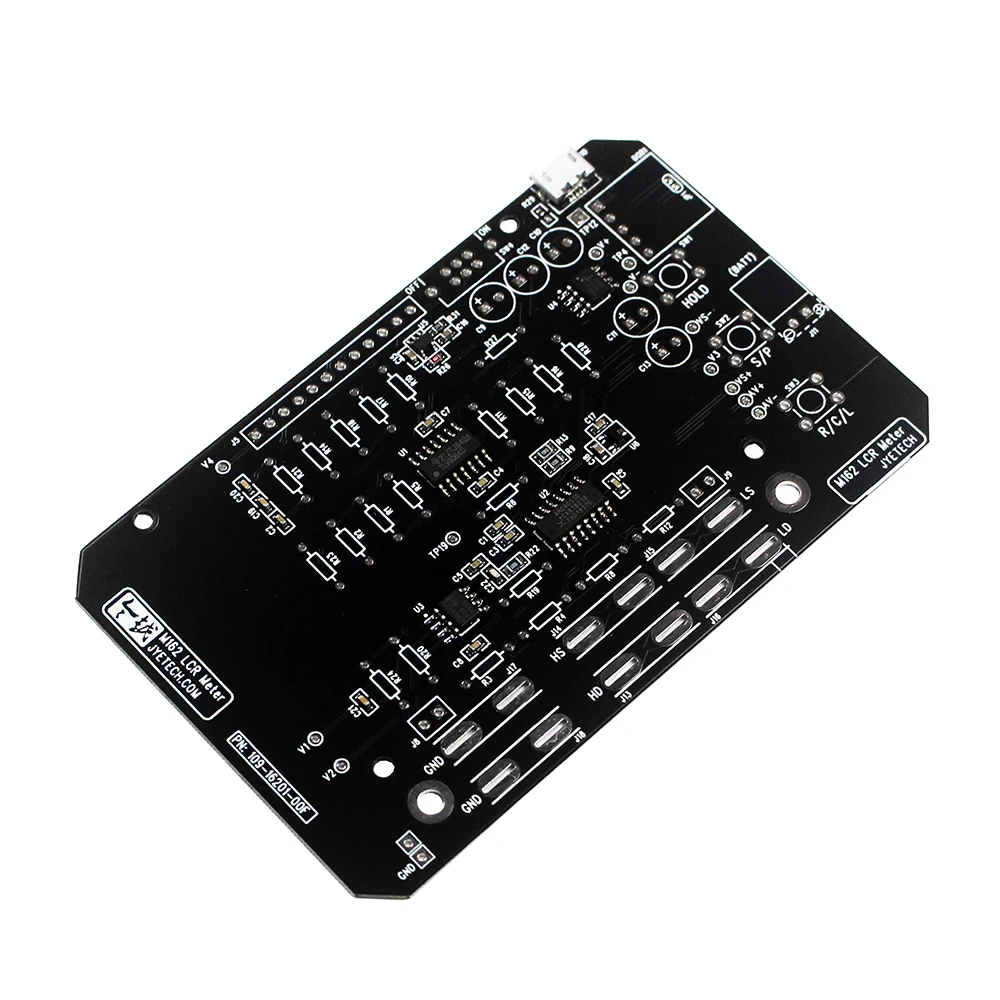

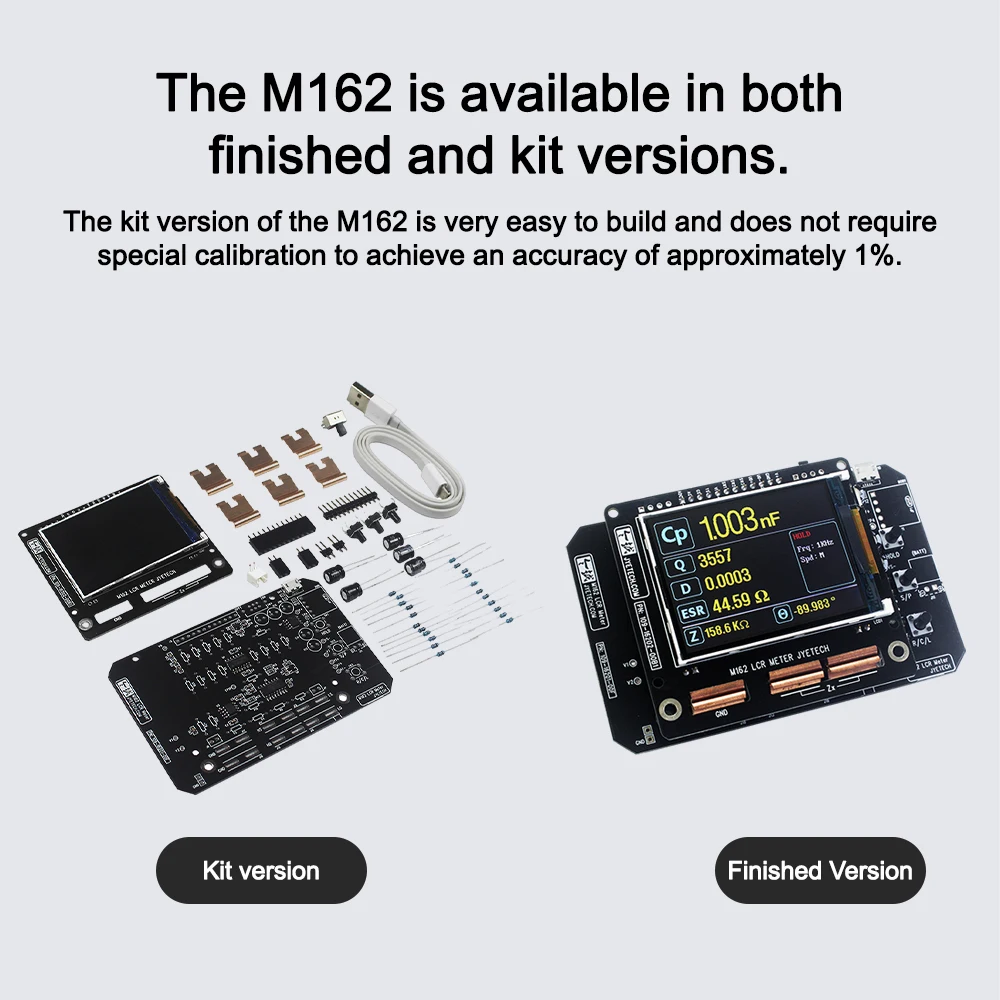

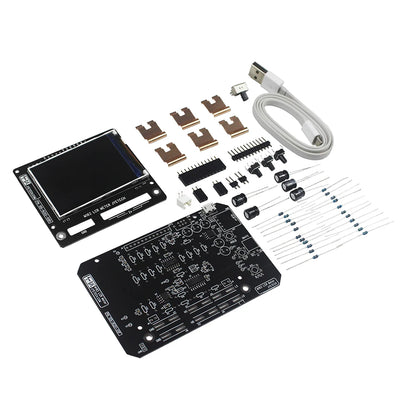

Loose parts: M162 tester motherboard * 1+micro charging cable * 1+manual * 1+loose parts * 45

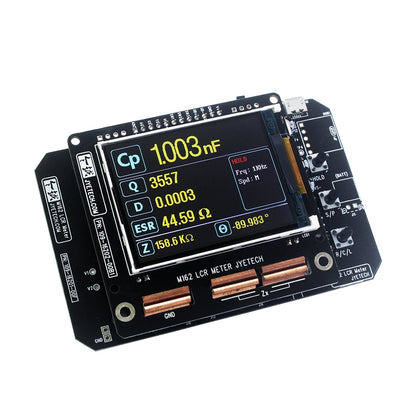

Finished product: M162 tester * 1+micro charging cable * 1+manual * 1
