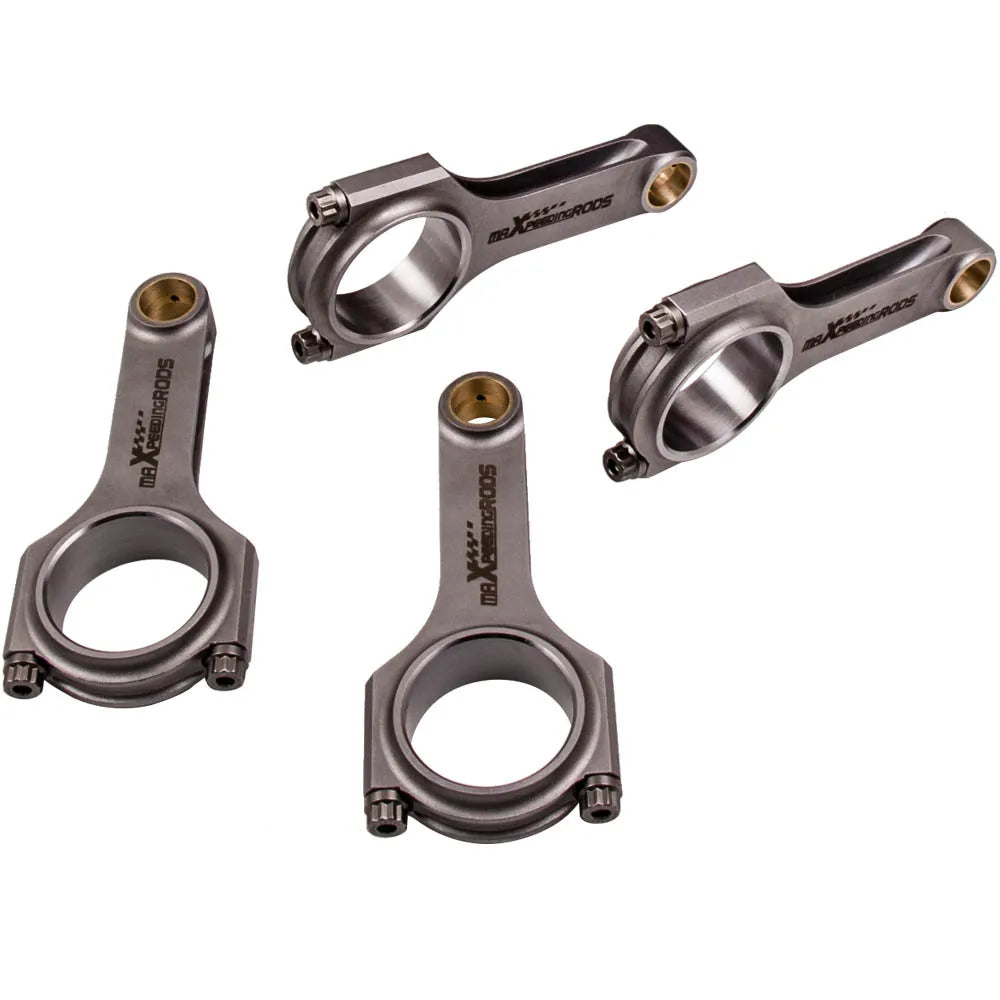

Racing 4340 EN24 Connecting Rods ARP Bolts For Citroen Saxo
Racing 4340 EN24 Connecting Rods ARP Bolts For Citroen Saxo
Couldn't load pickup availability
SPECIFICATIONS
Application: for Peugeot XSI 106 for Citroen Saxo Conrods, For Peugeot XSI 106 for Citroen Saxo
Big end diameter: 48.66mm
Bolts: Genuine 3/8" ARP 2000 bolts
Center to center length: 133.5mm
Claims: No any proprietary rights, affiliate and sponsorship with the third party marks.
High-concerned Chemical: None
Material: high performance aftermarket part, Forged 4340 aircraft chrome moly quality steel
Model Number: For Peugeot XSI 106 for Citroen Saxo
OEM NO.: For Peugeot XSI 106 for Citroen Saxo
Origin: Mainland China
Product Note: Due to the light and different screen display, the picture and product maybe slightly different.
Product Type: This is aftermarket replacement part
Quantity: 4 Pieces a set
Small end diameter: 18mm
Weight Tolerance: Balanced to +/- 1 gram in set
Racing 4340 EN24 Connecting Rods + ARP Bolts For Citroen Saxo /C2/C3/C4 1,6 16V
Please Carefully check the Size of the Rods in Specific and Description
Specification
TüVCertification Con Rods
Piston Bolt Hole: +-4/1000mm

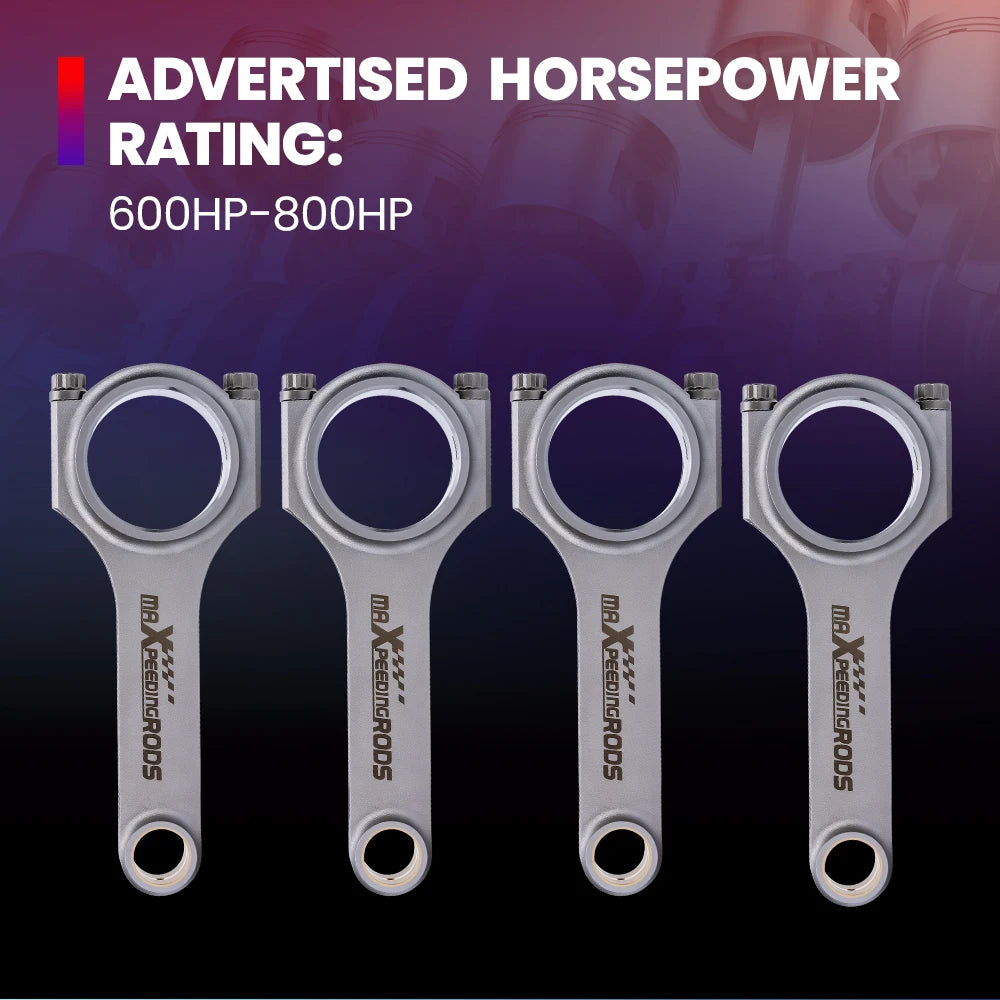

Power: 600hp ~ 800hp per set
Strength of the fastening (PSI): 220.000/230.000 PSI
Torque: 48ft ≈ 65 NM
Top speed: 9000rpm
Quantity: 4 Pieces a set

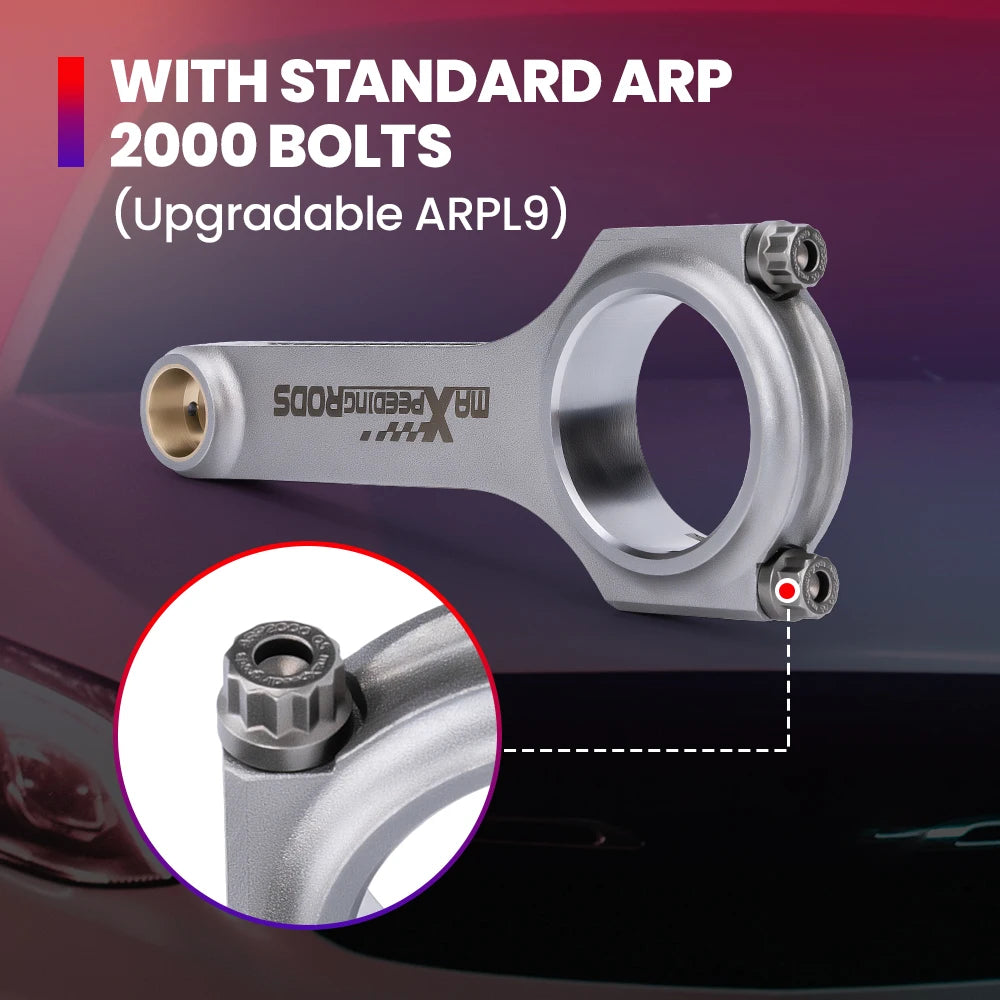

Bolts: Including Genuine 3/8" ARP 2000 bolts (Note: Extra cost for upgrading to ARP L19 bolts)
Material: Forged 4340 aircraft chrome moly quality steel for racing

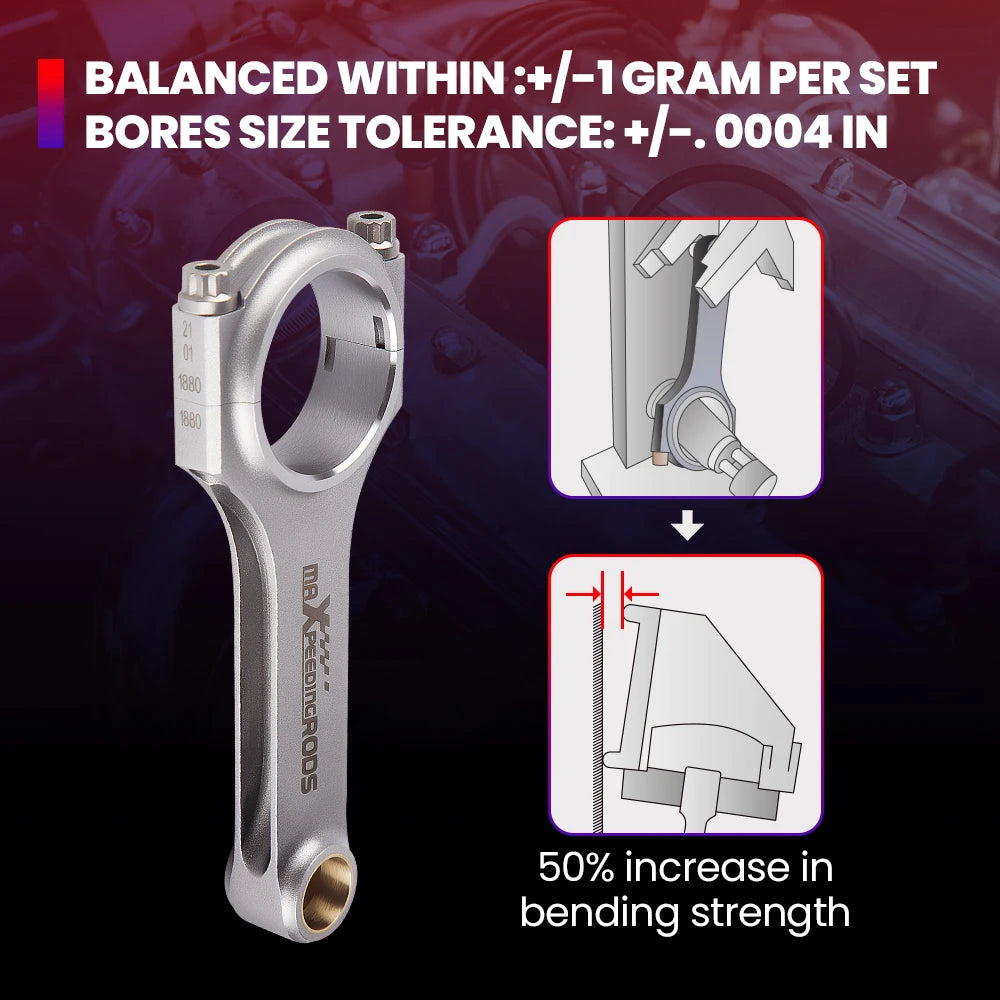

Weight Tolerance: Balanced to +/- 1 gram in set
Application
for Peugeot XSI 106 for Citroen Saxo

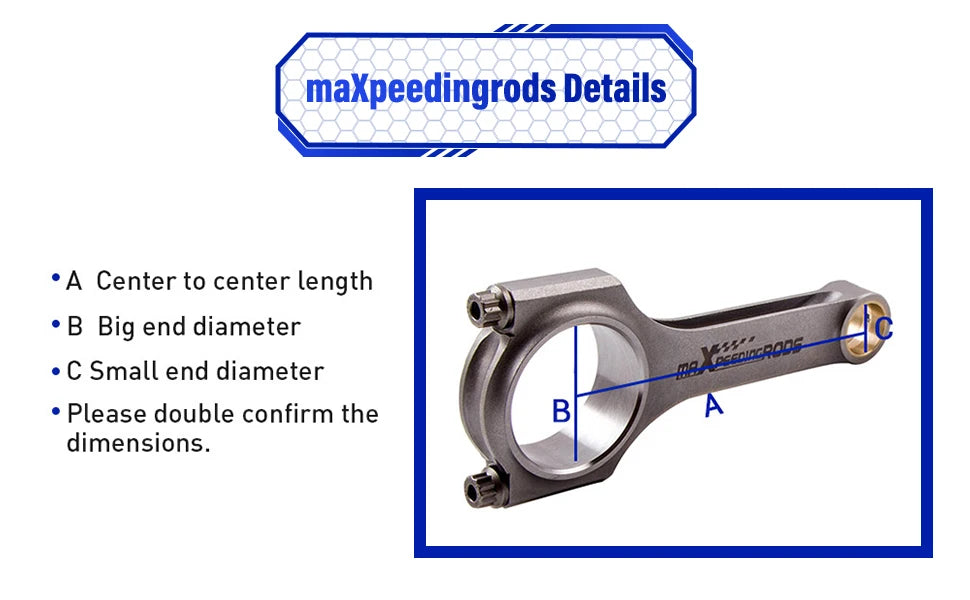

Dimensions
Center to center length: 133.5mm
Big end diameter: 48.66mm
Small end diameter: 18mm
Big end width: 24mm
Small end width: 24mm
Note
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us

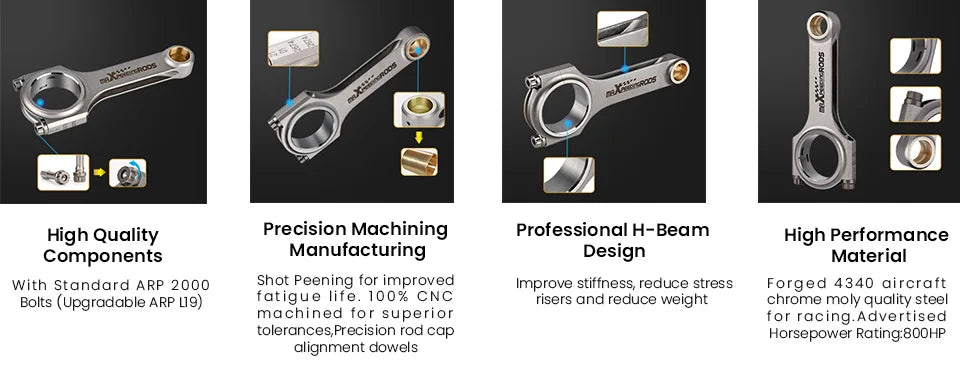

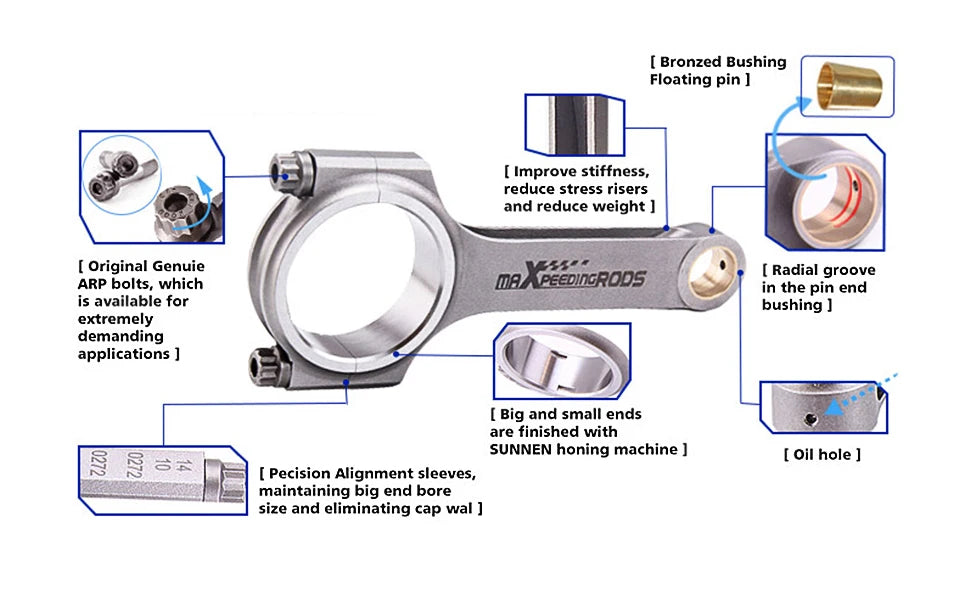

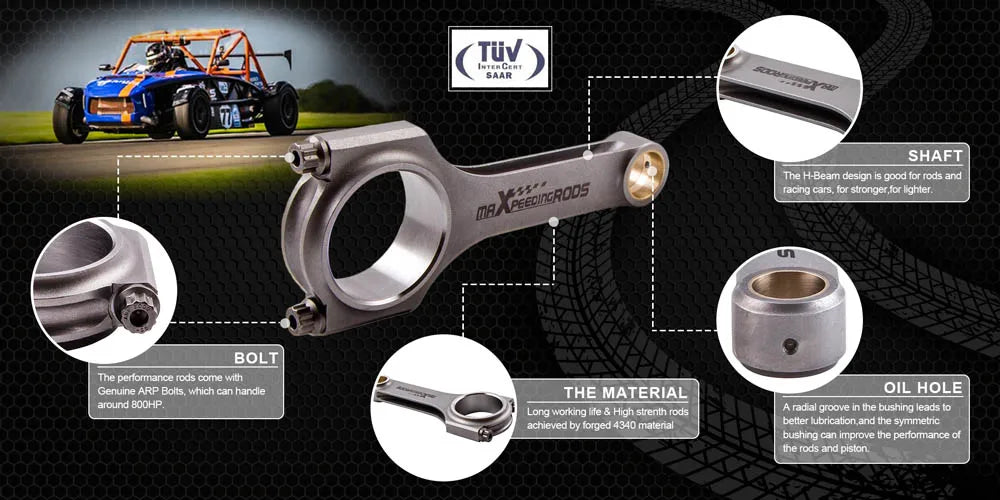

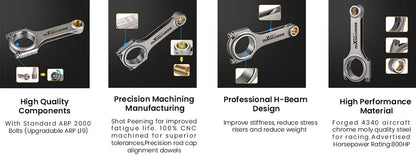

Features:
-Material: Forged 4340 aircraft chrome moly quality steel
-Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life
-Shot Peening for improved fatigue life
-CNC machining for superior tolerances, precise as much as +/-.0004 in
-Bronze wrist pin bushings are fitted to each rod to increased wear resistance

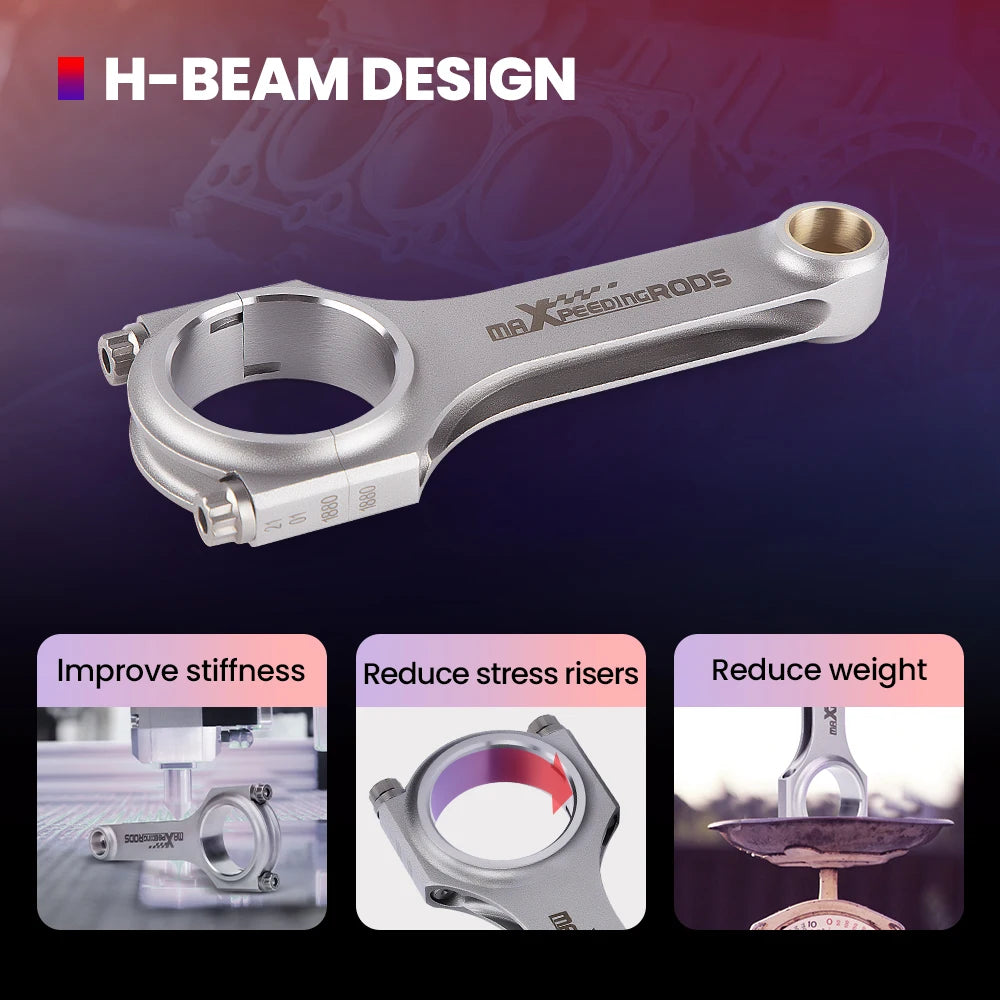

-H beam design greatly increases strength and durability
-Optimal balancing for weight matched sets of ± 1 gram
-Laser-Etched maXpeeding rods Logo For Authenticity, Provide non-logo products, also provide private customized logo
-Extra lubrication to minimize pin wear
-Dimensionally and magnaflux inspected to ensure extreme reliability
-100% X-rayed, sonic tested
-They mesh quality materials, precision forging, excellent craftsmanship, and high-tech designs to deliver a flawless performance for your race engine.
