Description:

The Stage2 Camshaft is a cam with a fairly aggressive profile.  It will have a nice Loped Idle and make tons of power all while keeping costs low.  This cam is a great choice for those daily drivers that like a nice Loped/Choppy idle.  Great for Cars, Trucks, SUV's, Street Rods, and LS Swaps.  There is no hiding this cam as will will have a muscle car sounds to it. Everyone will take note of this street warrior. Automatic's will perform best with a 2,600-2,800 Stall Converter.


Specification:

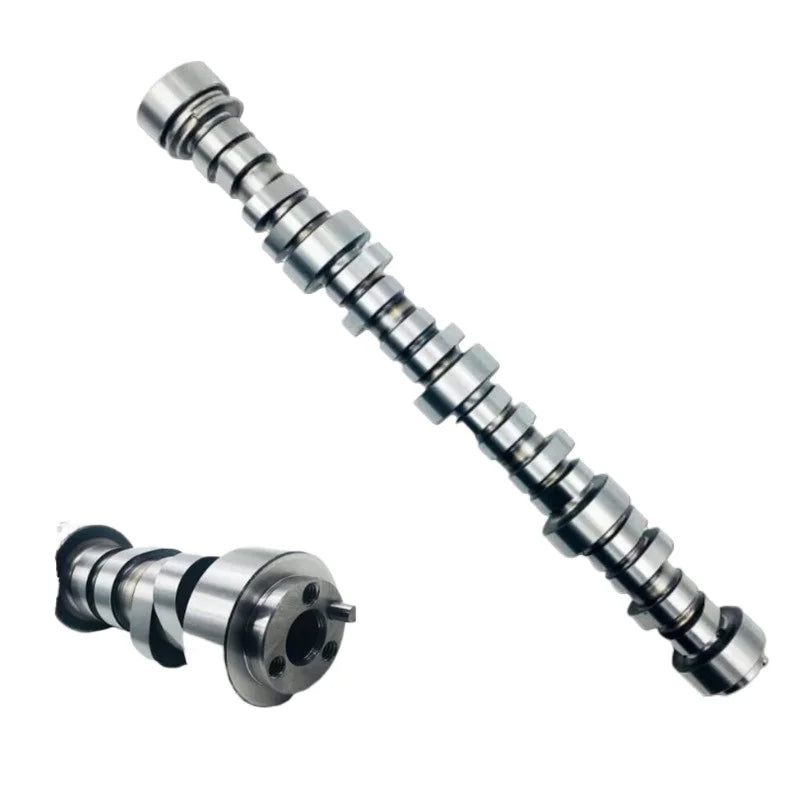

*1. Camshaft Compatibility:

for Chevy LS-Series Engine 1997-Up

Not for use with AFM/DOD

Camshaft RPM Range: 2200 to 5400 RPM
Camshaft Intake Valve Lift: .585"
Camshaft Exhaust Valve Lift: .585"
Camshaft Advertised Intake Duration: 283°
Camshaft Advertised Exhaust Duration: 286°
Camshaft Intake Duration at .050": 228°

Camshaft Exhaust Duration at .050": 230°
Camshaft Lobe Separation: 112°
Camshaft Intake Centerline: 108°
Camshaft Cam Gear Attachment: 3-Bolt

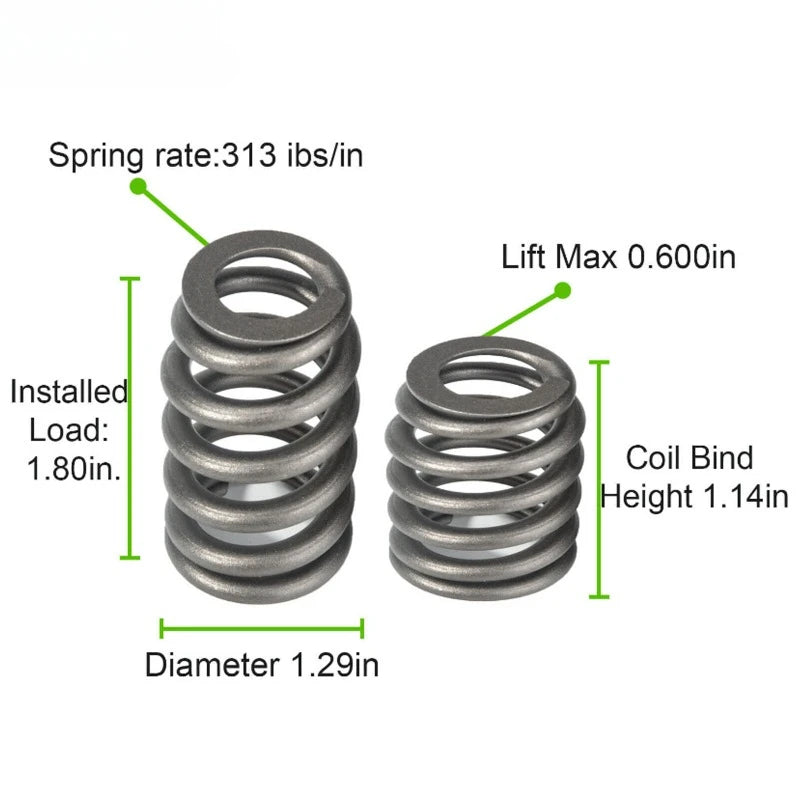

*2. Number of Springs Per Valve: Single
Outside Diameter of Outer Spring (in): 1.290 in.
Spring Coil Bind Height (in): 1.140 in.
Damper Spring Included: No
Spring Install Load: 130lbs
Spring Install Height: 1.800"
Spring Open Height: 1.175"
Spring Open Load: 318 lbs
Spring Rate (lbs/in): 313 lbs./in.
Inside Diameter of Outer Spring (in): 0.885 in.
Valve Spring Style: Beehive

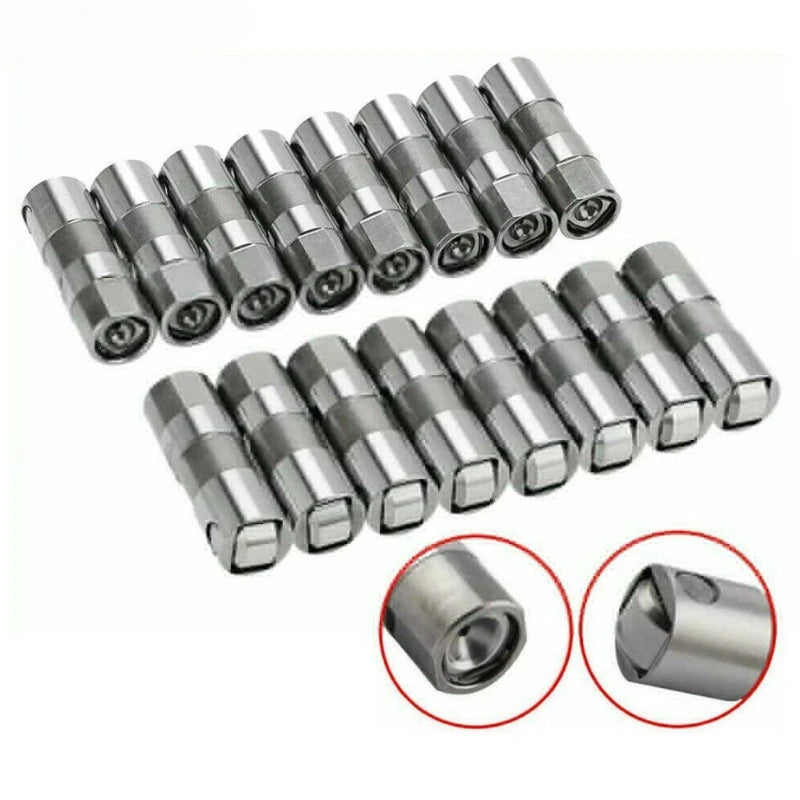

*3. Set of 16 Elgin Roller Lifters for 1997-2015 Chevy/GM LS Series Factory Roller applications without Active Fuel Management.

Lifters Fitment includes:

1999-2012 Trucks/SUVs 4.8L V-8 VIN-V,C,A
1999-2007 Trucks/SUVs 5.3L V-8 VIN-T,Z,B
1997-2004 5.7L LS1 V-8
2001-2005 5.7L LS6 V-8
1999-2010 Trucks/SUVs 6.0L V-8 VIN-U,K
2005-2009 6.0L LS2 V-8
2008-2013 6.2L LS3 V-8; without AFM
2006-2013 7.0L LS7 V-8
Also fit Factory Roller 93-97 LT1, and 305-350 Chevy Engines.

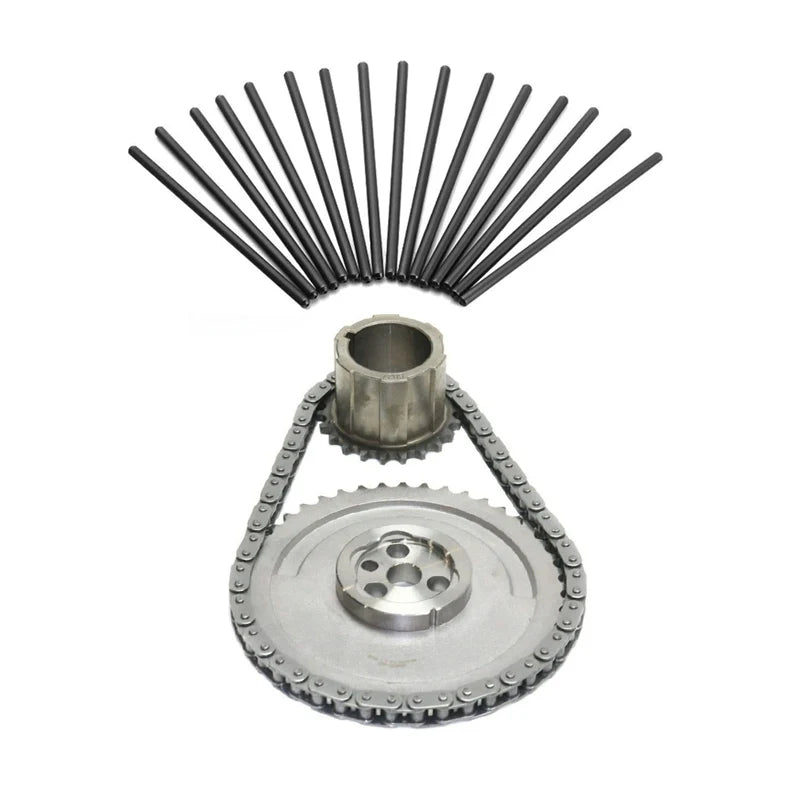

*4 putters
5/16" DIAMETER - 7.400" LENGTH - .080 WALL THICKNESS

*5 M295(12586665) Oil Pump Timing chain

Items include

Camshaft + Valve Lifter + Push Rod: Camshaft + Screw Set + Spacer Set with 16 Valve Lifters and 16 Valve Lifters+16 putters+Oil Pump+Timing chain
